AD6DM Dennis

Riding the momentum of yesterday's QRP Build Event at , I took to building the BNC End Fed Antenna Kit™ for an EFHW QRP antenna.

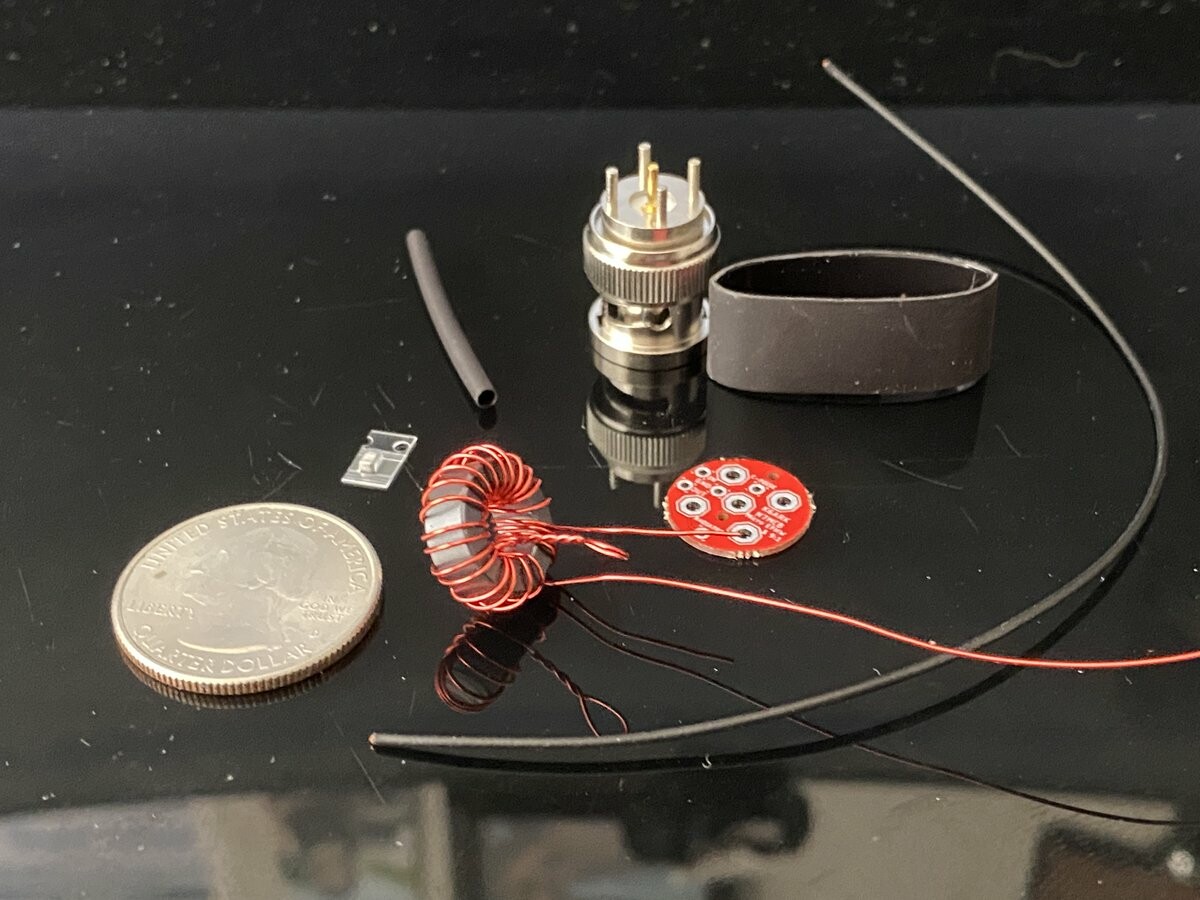

The pieces to K6ARK's BNC micro matching unit kit. https://k6ark.com

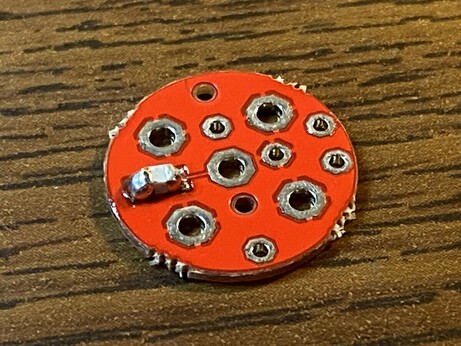

This SMT capacitor is TOO SMALL. It's a challenge to my old eyes.
AD6DM Dennis

Of course, I can't do a build perfectly the first time, I ended up putting the 49:1 toroid assembly on the WRONG SIDE of the board.

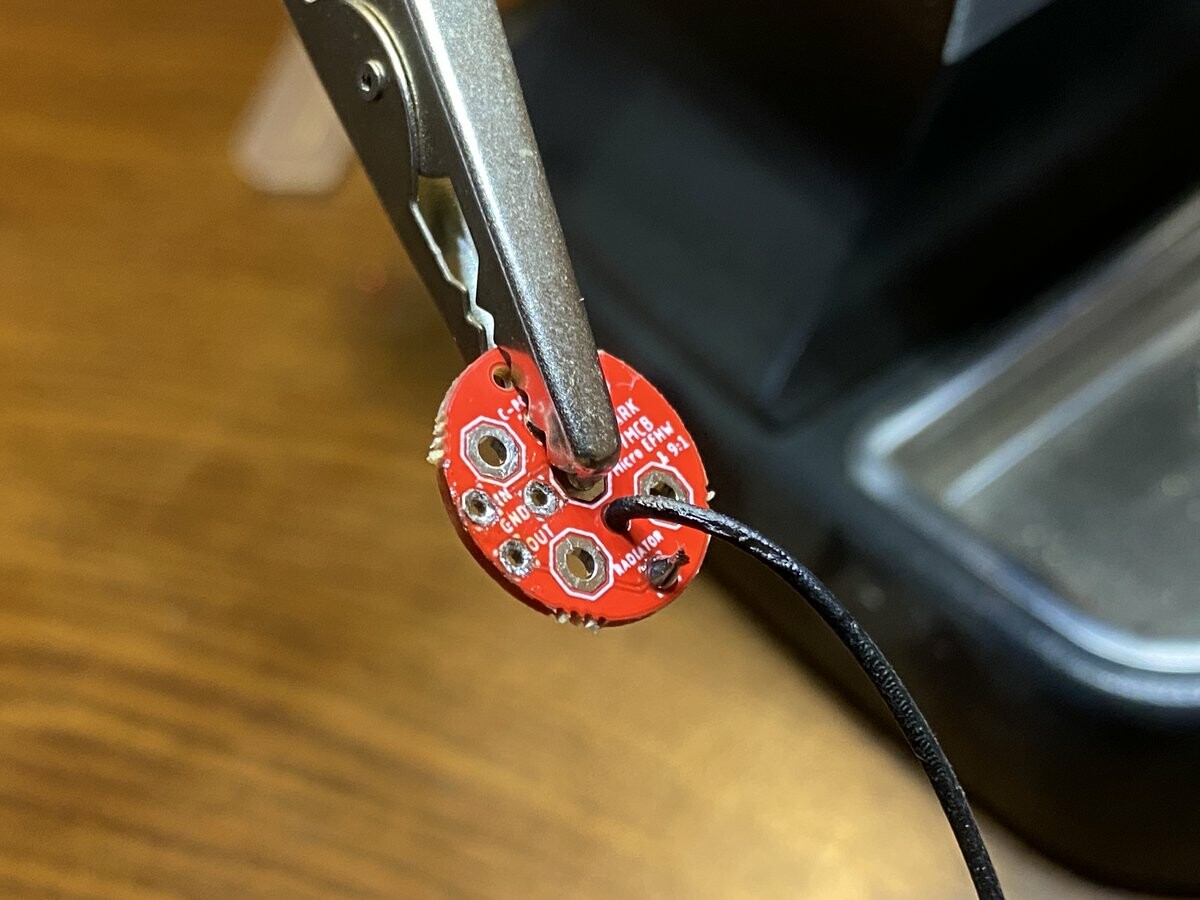

Radiator lead wire is fine, though those holes are really small and it wasn't easy to string through.

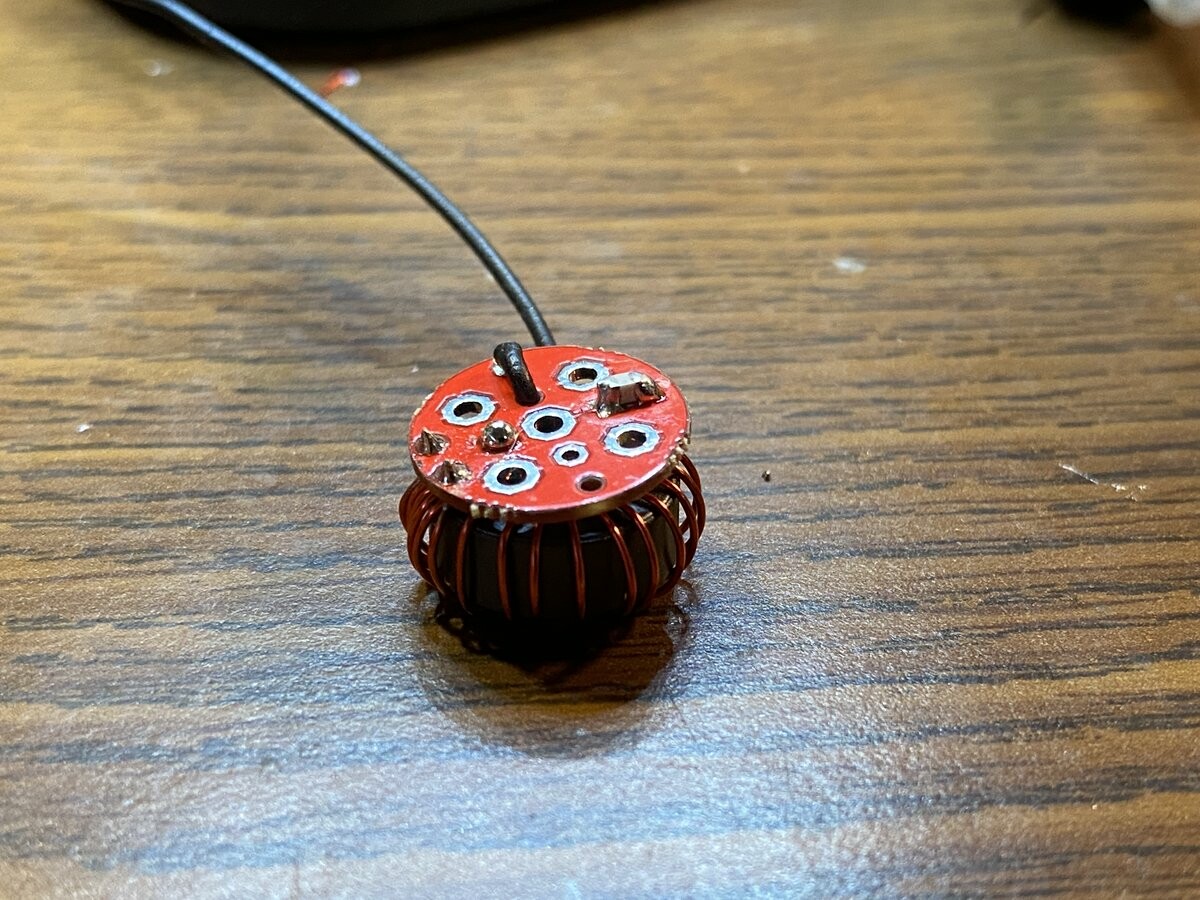

I DID IT BACKWARDS! Soldered the unun toroidal transformer to the wrong side of the board! AAAggghh!!
AD6DM Dennis

Time for some desoldering to correct my mistake... Can it be fixed??

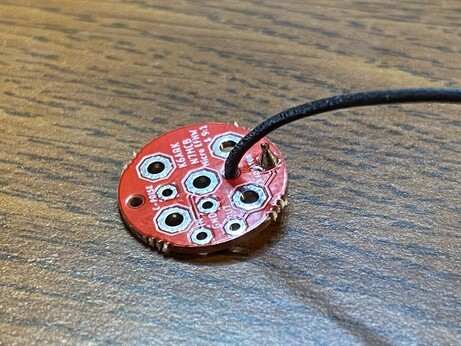

View of the small round PCB after desoldering the toroid assembly off of it.

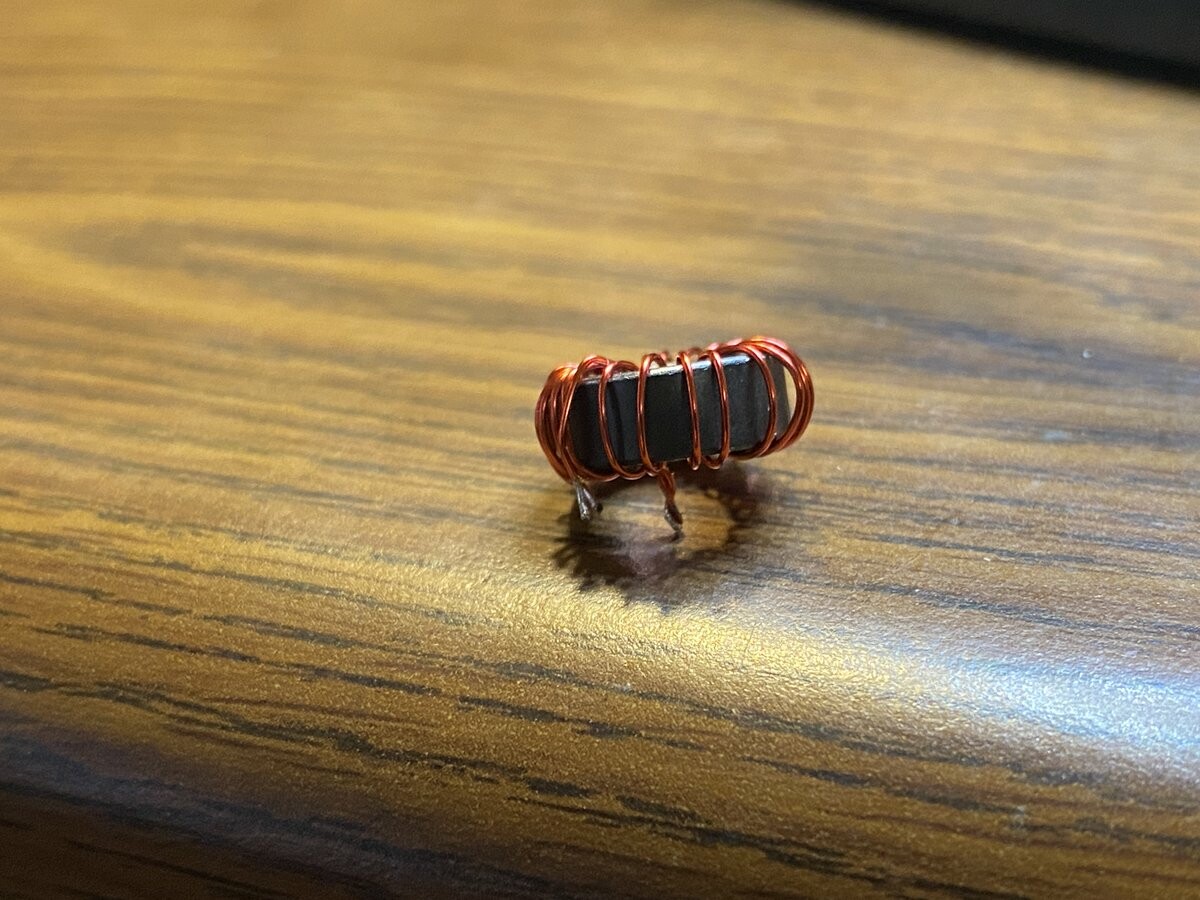

The 49:1 unun toroidal transformer removed after perfectly attaching it the wrong way first time.
AD6DM Dennis

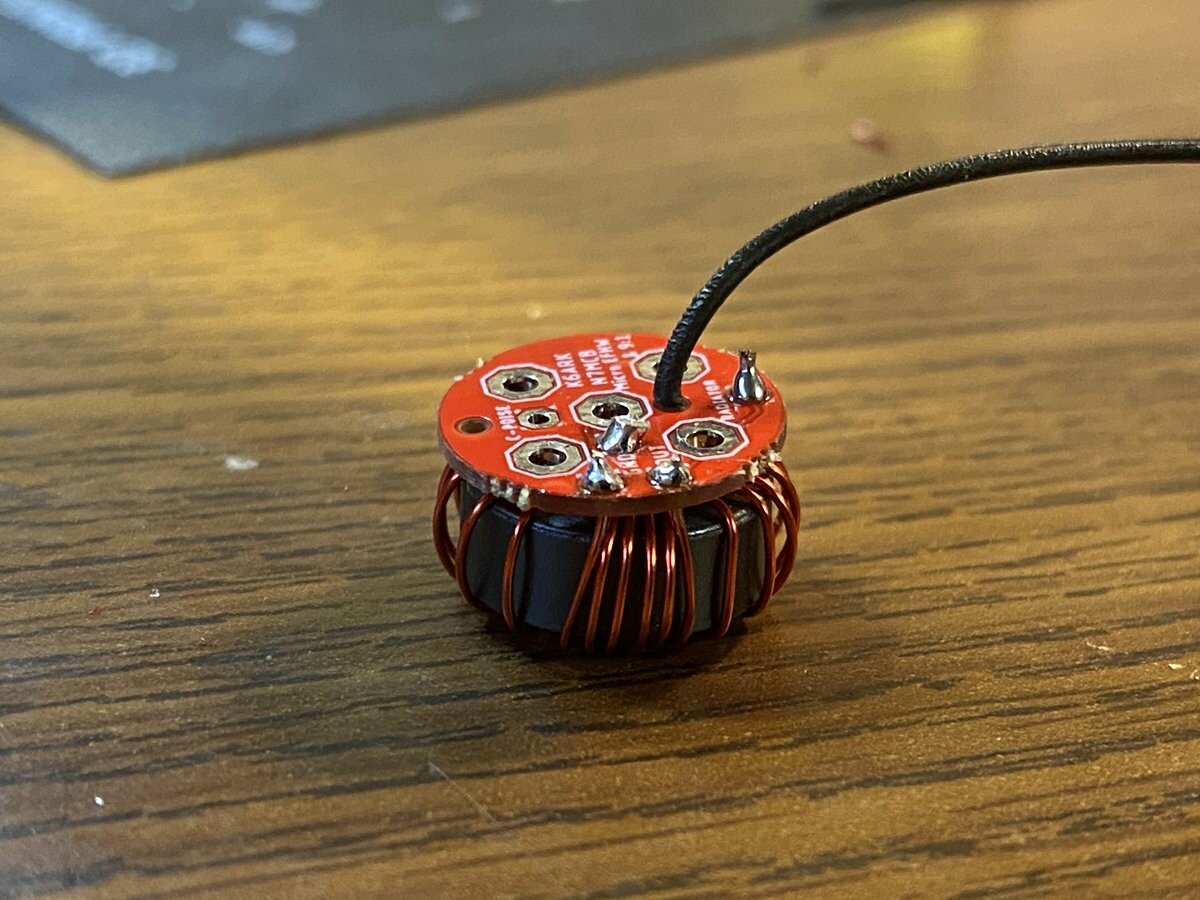

GREAT SUCCESS! It's back on (the correct side).

Re-soldered the unun toroidal transformer to the correct side of the PCB, and there's CONTINUITY! Woohoo!
AD6DM Dennis

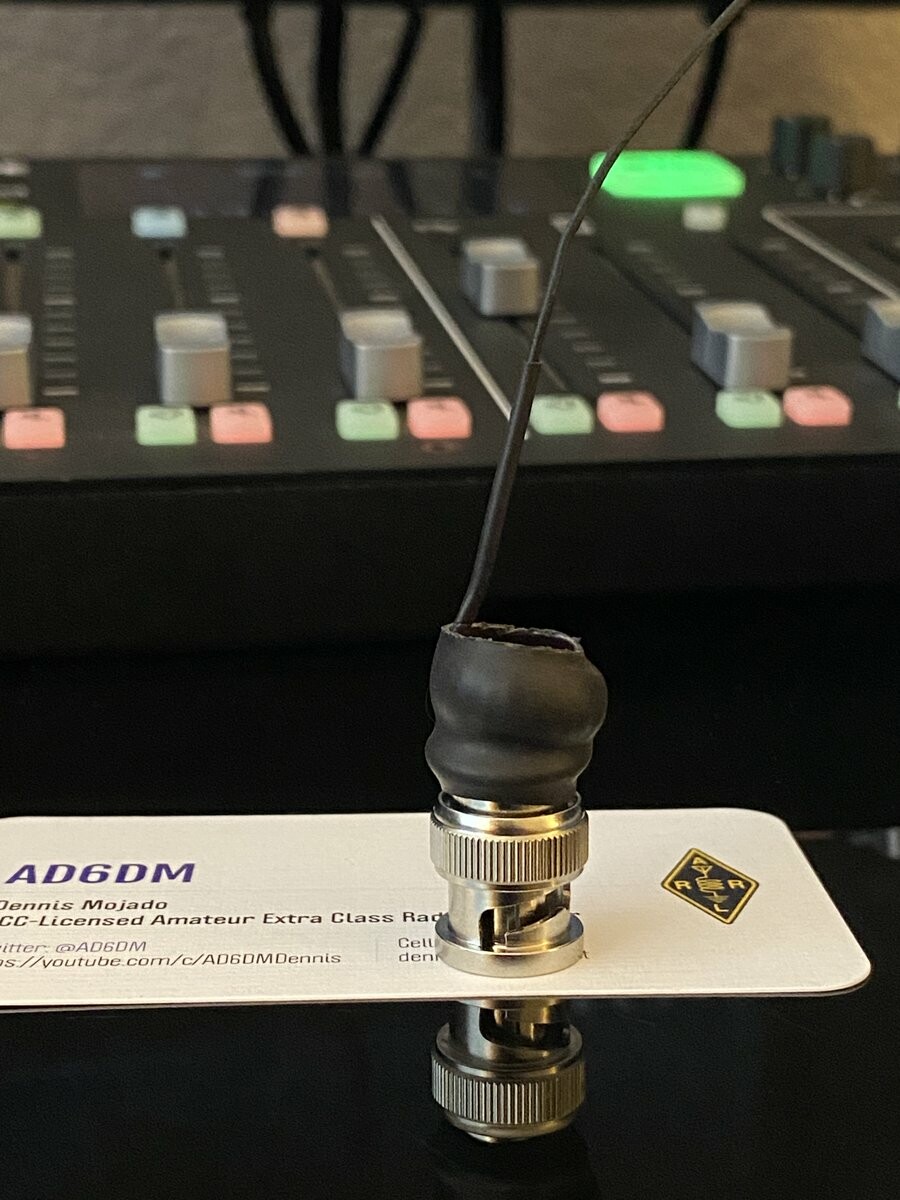

And the final assembly with the BNC connector attached. Now to wrap everything up and get a long wire cut.
Unfortunately it's too windy outside to test, so I will have to continue this later.

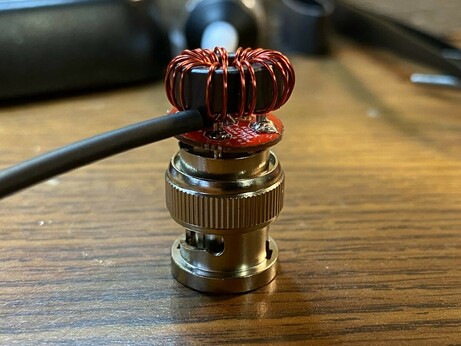

The completed assembly of the K6ARK™ QRP BNC End Fed Antenna Kit™ with 49:1 toroidal assembly, custom PCB, 100pF SMD capacitor, 26 gauge magnet wire, 26 gauge polystealth wire, all on top of a single BNC connector.
