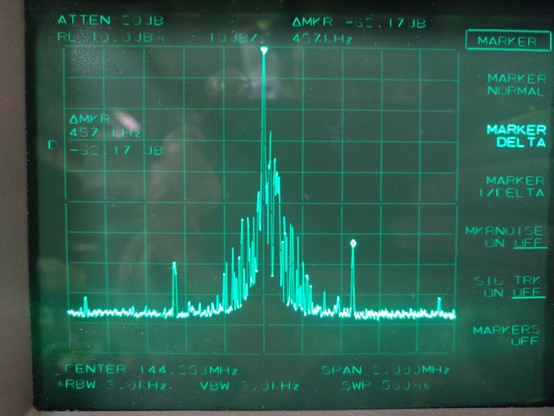

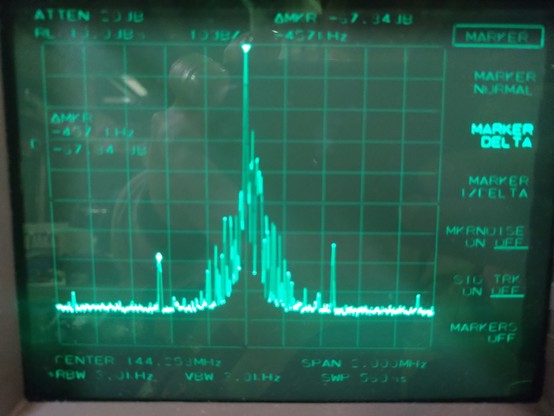

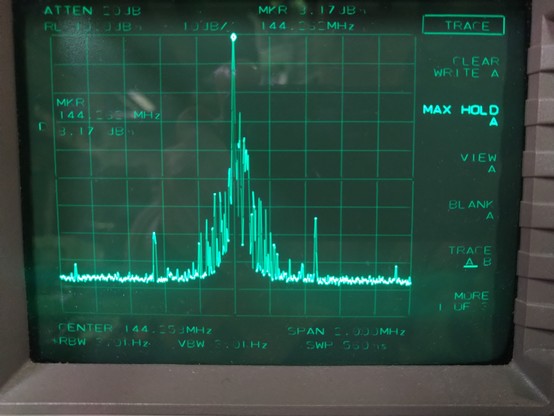

Yaesu FT-817 at full power on 2m upper sideband.
3kHz RBW, 2Mhz span, max hold and me talking to the mic for a moment.
The spurs look bad, but seem to be -67dBc and -62dBc down.
Yaesu FT-817 at full power on 2m upper sideband.
3kHz RBW, 2Mhz span, max hold and me talking to the mic for a moment.
The spurs look bad, but seem to be -67dBc and -62dBc down.
