OE1RFC | Clemens

Some time ago this Yaesu VX8 of a friend of mine died while transmitting, no display, no LEDs, no charging light.

Last week I took it apart to see if it could be fixed.
I traced the voltage rails in the service manual, the micro controller voltage was completely dead. I suspected the LDO regulator, but it turned out to be a reverse protection diode. I don't have SMD diodes, but there was enough space to fit a similar DO diode 🎉
The VX8 is still a great radio, I also have one

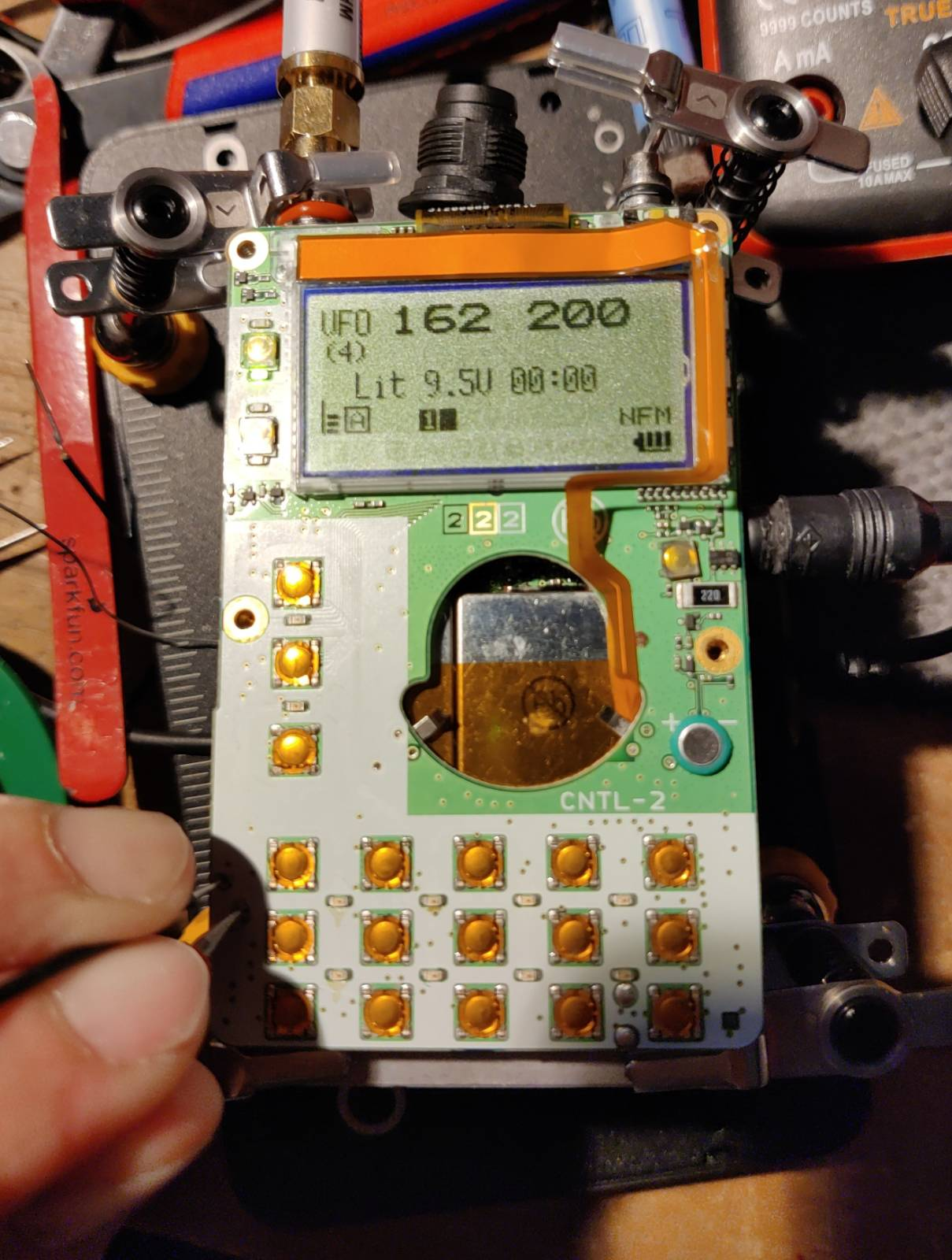

The opened Yaesu VX handheld radio, just the PCB boards and power connected to it. The radio is on and in scanning mode, with a few fingers carefully holding SMD pliers to short two vias connected to the broken diode at the bottom left of the PCB .

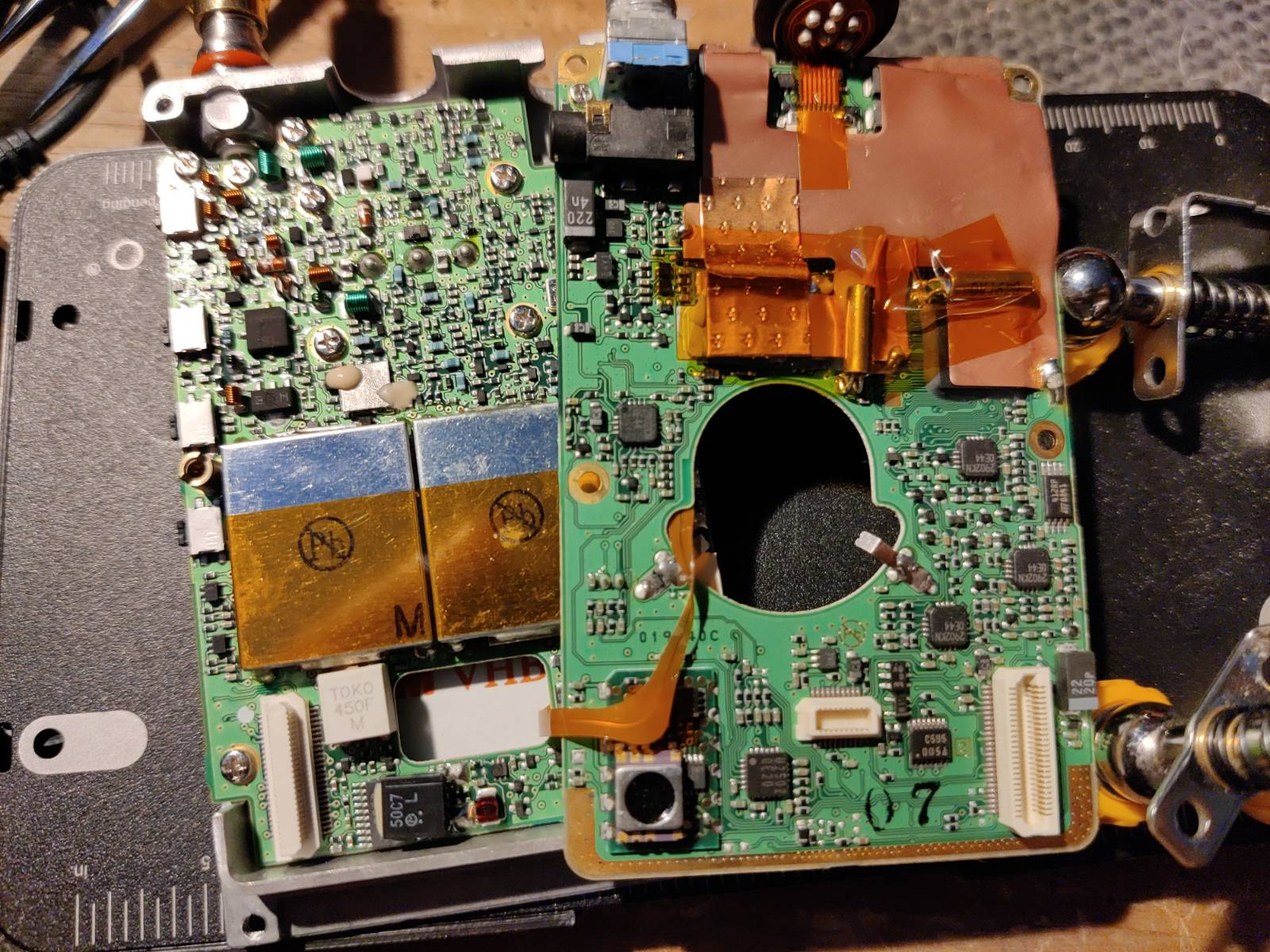

The two radio and control PCB boards of the VX8 taken apart.

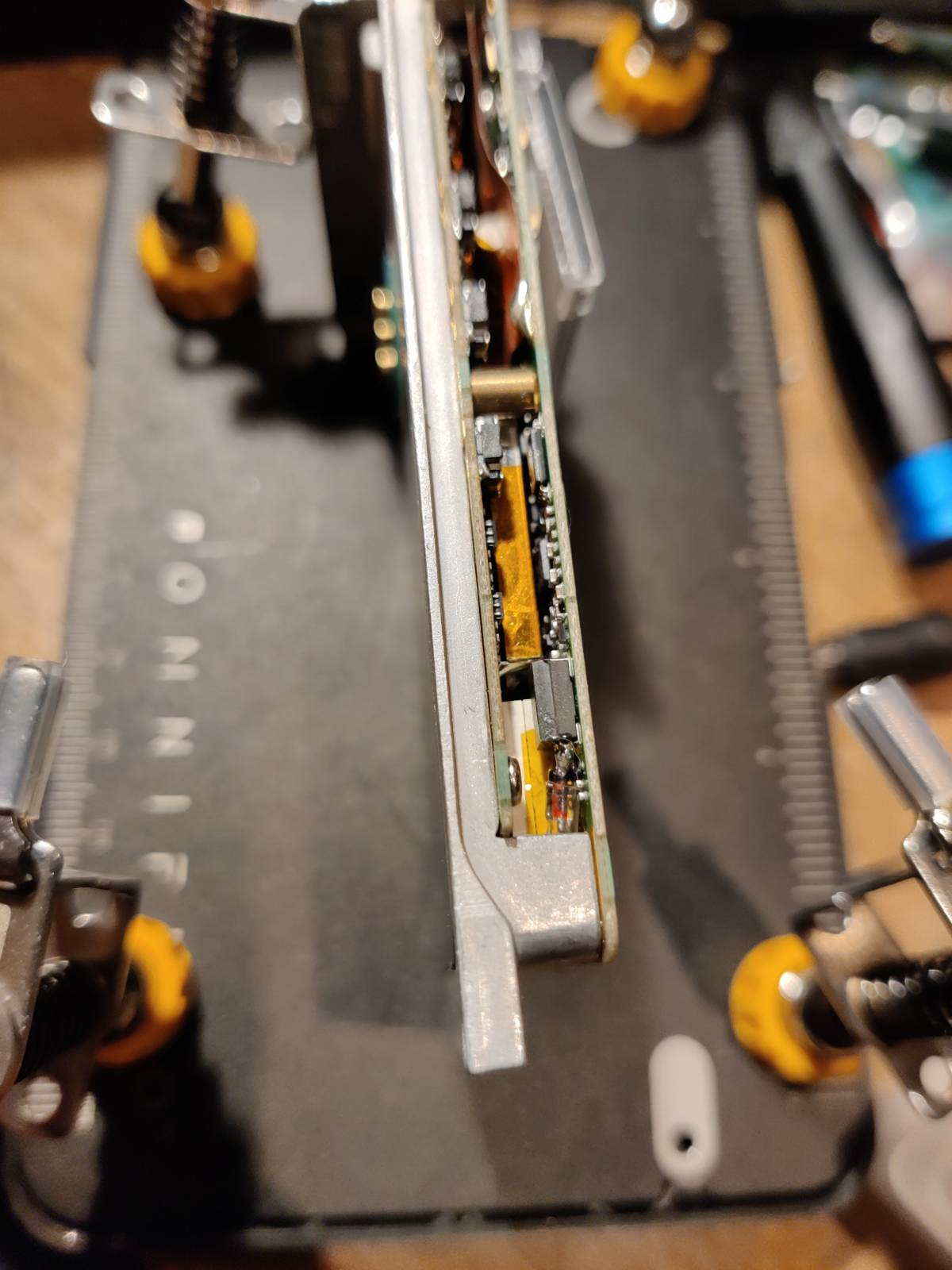

The VX8 PCB stack visible from the side. At the bottom, between the two PCBs below a black diode, a red/transparent diode in DO formfactor can be seen, which replaces the original reverse-protection diode

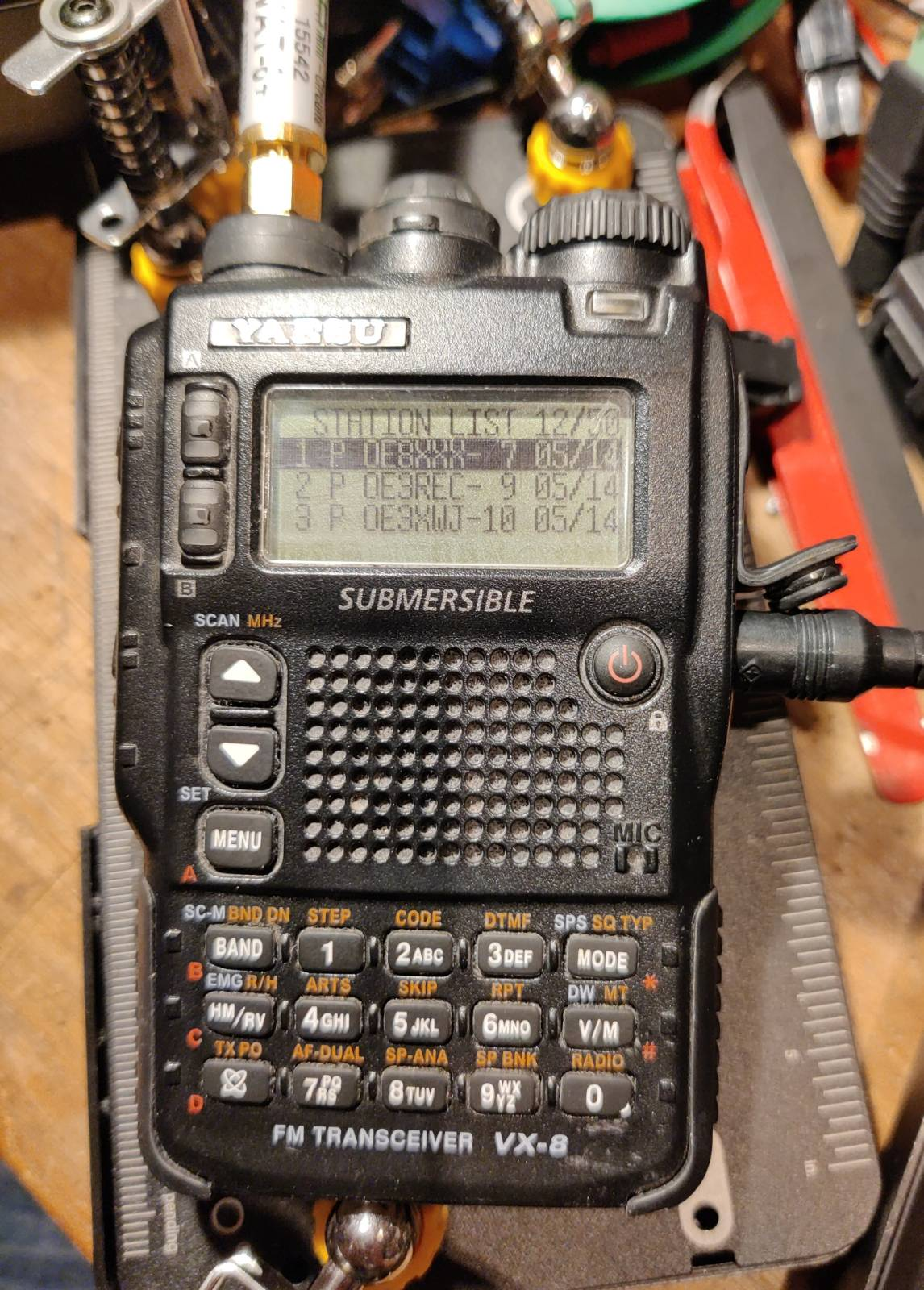

A picture of the again closed VX8 handheld radio with power attached, the radio is on and displays some old APRS stations in it's station list.
neuron

@OE1RFC It's so interesting how often a simple (sometimes hard to diagnose) fault is responsible for an unusable device. I wish there would be a better culture around repairing stuff.

It is such a satisfying feeling ❤️

OE1RFC | Clemens

@neuron I fully agree, without the service manual I probably would have never found the fault, as the LDO regulator is on the completely other side of the PCB and the routing is just chaos 😅 It was already hard enough to find the components in the layout.
