Gary @N8DMT

@hamchallenge HC21S

Used GNU Radio to build a local 10m repeater (all mode) which was used to complete a local 10 meter FM repeater contact as part of ham challenge week nine. Using Pluto SDR as the RF front end for this system. System allowed ICOM IC-705 & IC-7000 FM radios to communicate via the 100 KHz repeater-split.

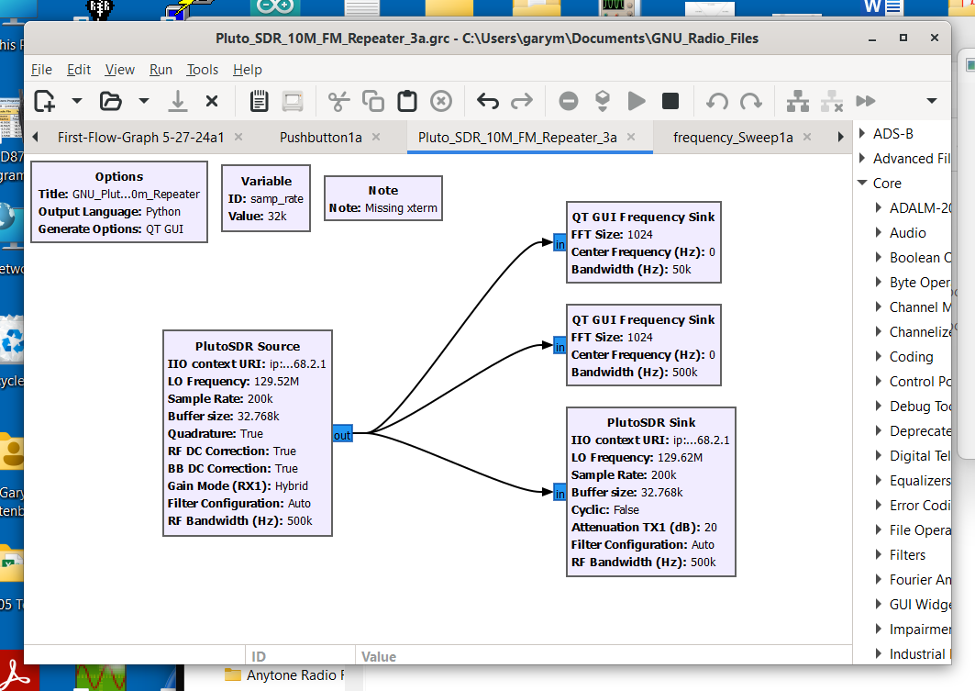

GNU Radio flow graph showing Pluto SDR receiving a signal (left) and retransmitting that signal offset by +100 KHz (right).

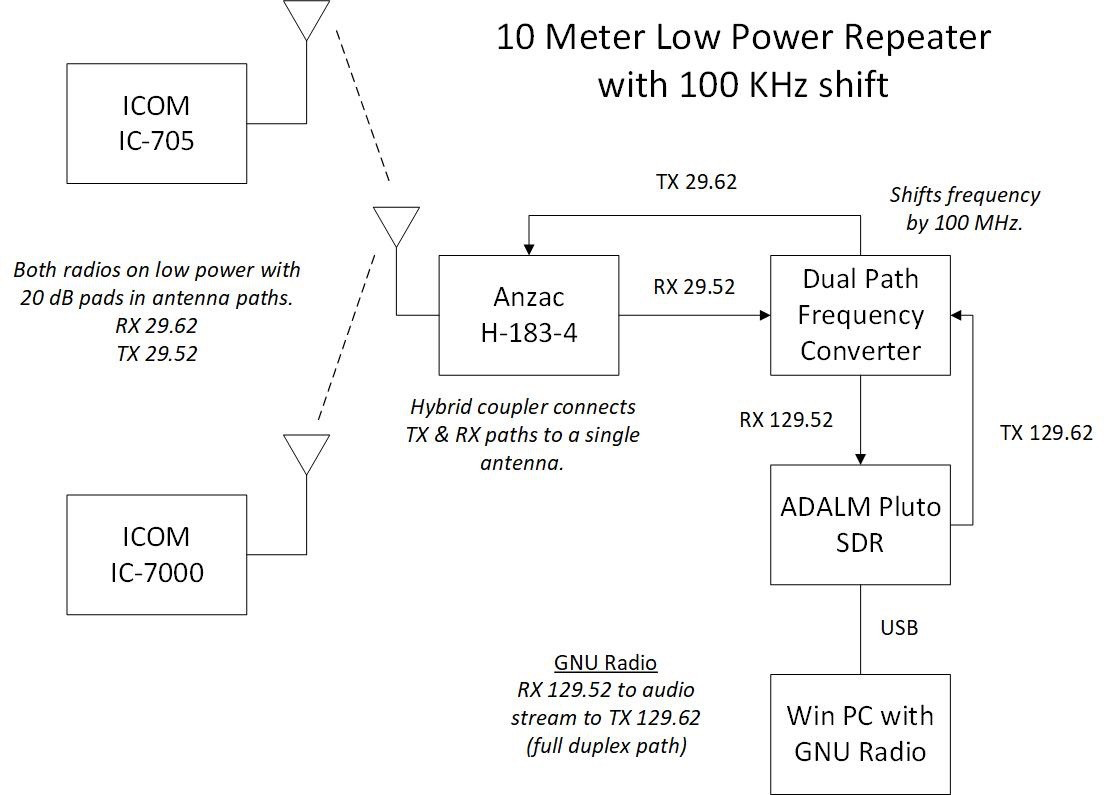

Block diagram of the local 10 meter repeater constructed to satisfy Ham Challenge Week 9.

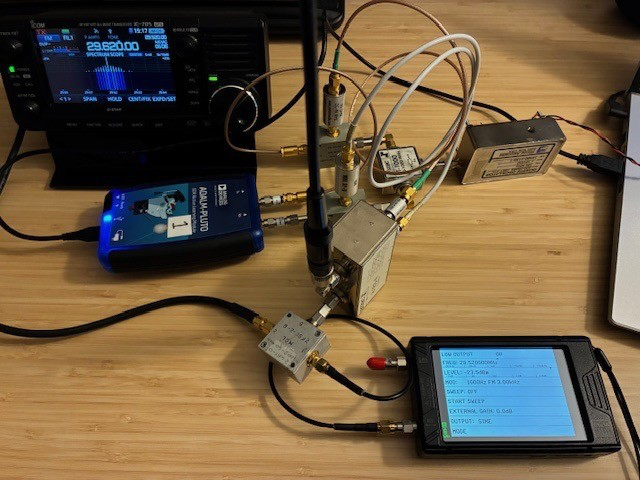

Photo of the setup used for HC09 using Pluto SDR, 100 MHz offset oscillator, two sets of mixers and low pass filters.
