Rick Altherr

@dysfun it's mostly a radome. The antenna is a milled plate that is a few inches tall.

ftg

@mxshift @dysfun
Very nice.
Got any pictures of the insides?
Leica makes it sound survey-grade.

Rick Altherr

@ftg @dysfun the center cap is glued down so no further disassembly

ftg

@mxshift @dysfun
Thank you for the picture.
Unfortunate that the main element does not open.
As everybody seems to just call it "Dorne-Margolin antenna element" or "a Dorne & Margolin C146-10 vertical dipole element".
And Dorne & Margolin seems to be some company.

ftg

@k5em @mxshift @dysfun
Nice find, thanks.

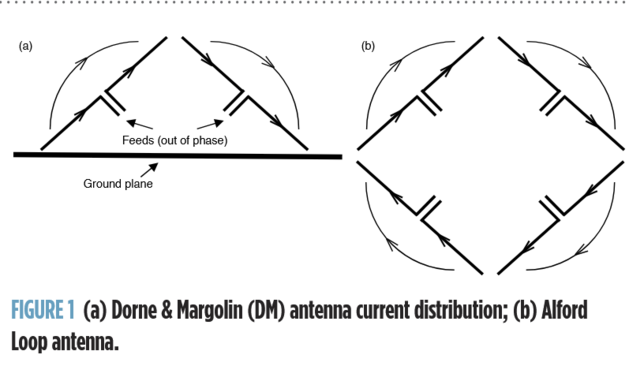

So that Dorne Margolin setup is 4x phased, tilted dipoles?

Justin K5EM

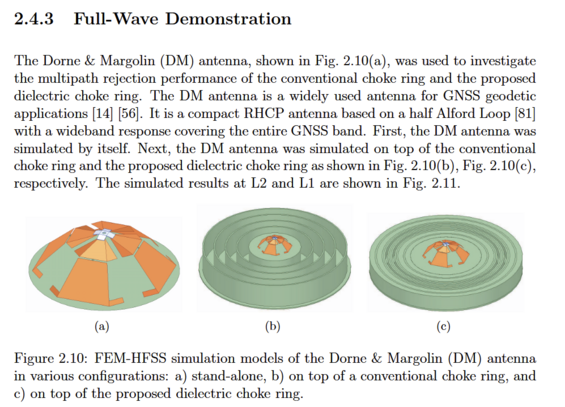

@ftg @mxshift @dysfun that is what the schematic seems to say, but I'm actually not completely sure now, after a lot more research. Everyone regurgitates the same schematic image, but the best image I've found of it is this one from carleton.scholaris.ca/bitstrea

ftg

@k5em @mxshift @dysfun
Strange that there are also no references to patents and patent numbers.

Justin K5EM

@ftg @mxshift @dysfun agree. There's the original Alford loop patent, but it doesn't really reflect what seems to be going on here, even though the D&M is called a modified Alford loop. patents.google.com/patent/US22

patents.google.comUS2283897A - Antenna system - Google Patents
